food beverage wine industrial steam cleaner

FOB Reference Price:Get Latest Price
$3,500.00 - $4,000.00 / Sets | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 2 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Heng'An
Model Number:
HF2190
Power(W):
15000
Dimension(L*W*H):
870x450x930mm
Type:
industrial steam cleaner
Steam Nozzle Qty:
2
Ability in wash:
heavy oil, dust, germs, etc.
Steam Pressure:
145psi/10bar
Vapor humidity adjustment:
available for dry and wet steam
Machine Type:
Other, Other
Condition:
New
Feature:
Critical Cleaning / Residue Free, Non-toxic
Fuel:
Electric
Certification:
ce
Cleaning Process:
Vapor Cleaning
After-sales Service Provided:
No overseas service provided
Use:
Cleaning, sterilizing/disinfecting, bad smell killing
Cleaning Type:
Vapor/steam thermal decomposition
Industry Used:
Food, Beverage, Pharmaceutical Processing
Material:
Most kinds of dirty surface
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
1. Packing Case: Plywood Case;
2. Case Qty: One
3. Packing Size: 940*510*950mm
4. Gross Weight: 110kgs
PS: All accessories and spare parts are included inside.
Port
Guangzhou
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 2 To be negotiated

Food Beverage Wine Industrial Steam Cleaner

              -----Cleaning, Sterilizing, Odor Removing

Brief Introduction

  HF2190

Food Beverage Wine Industrial Steam Cleaner

      Real Dry Saturated Steam        Humidity Adjustment for Wet Steam
Steamer Parameter

Power Resource

380V-420V 3ph 50/60Hz Electricity System

Power Rate

15KW



Steam Pressure

1.0 MPa (10bar or 145psi), saturated steam pressure, not pump pressure,

Better cleaning effect and quality than so called 15bar or 20bar vitual pump pressure steamer

Steam Gunjet No.

2(can operate at the same time with stable steam pressure)

Highest Steam Temperature

180°C

Effective Operating Temperature

60°C-130°C

Water Consumption Rate

36kg/h

Humidity Adjustment

Available for dry and wet steam

Continuous Work Time for Dry Steam

Non-stop, 24hours All day long (Very Important)

Continuous Work Time for Wet Steam

Non-stop, 24hours All day long

Tank Capacity

18 Liters

(Can automatically supply by external water connection)

Material

Stainless steel, Hi-Q sodium silicate for

heat preservation & insulating

Application

CleaningDisinfection/Sterilizing and Bad Smell Killing for:

♦ Food & Beverage & Wine Production Line Machinery & Facility

 Oil Field      Oil Machinery Production Line     Cosmetic Factory    Hotel&Resturant Kitchen

♦  Fixed Car Wash Shop(Car interior, engine, exterior, tire&reel, roof, carmat, chair, air conditioner, dead corner ,etc. )

 Door to Door Car Wash Services     Medical Equipment & Hospital care

 Home care(air conditioner, chair and desk, washroom, sofa, floor, ceiling), etc.

Steam Effect

1. Steam Quality:

 (Dry Saturated Steam is the core technology for steam washer, by dry steam we can get better cleaning, sterilizing, bad smell killing effect; wet steam is just dry steam mixed with hot water, we can also call wet steam as steam like micro water, thus please pay more attention on comparison on dry saturated steam performance)

Remarks: For special industrial cleaning requiring higher steam temperature and lower humidity steam, we can even OEM super dry saturate steam.



2. Steam Washing Performance:




By thermal degrading, steam can remove dust, oil, insect body, ice-cream, coke stains and other kinds of dirty and germs without chemical but wonderful cleaning, disinfection and bad smell killing effect

3.Steam Sterilizing:

Customer Sample

1. Automatical Steam Cleaning Line for Starbucks Cup



2. Steam Cleaning for Motor of some famous bus factories.

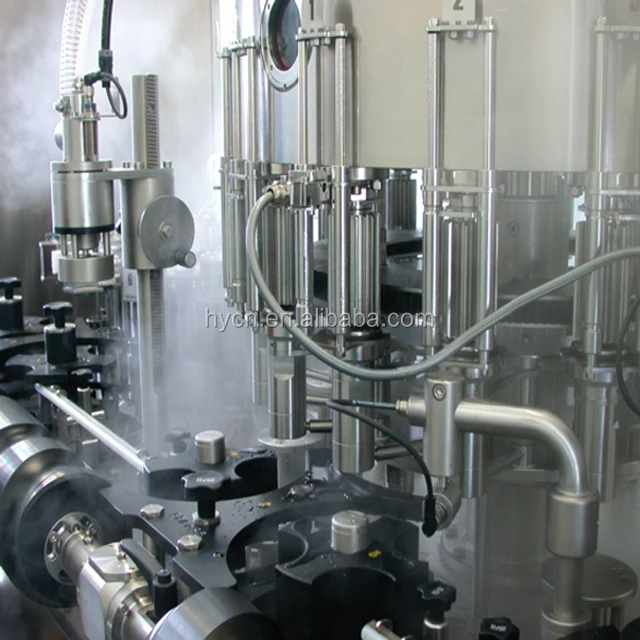

3. Steam washing in food&fruit&water&beverage processing line:



4.Fixed car wash shop and underground parking lot:

Fair Show



Canton Fair, Shanghai Frankford-hold "Automechenika Fair", Guangzhou AAITF fair, Zhengzhou CIAAF fair, etc.)

Delivery & QC

 Heng'An Industrial High Pressure Steam Cleaner Delivery Preparation and Quality Inspection by Customer

1) Container order delivery preparation

2) Seriously inspection and test for each steam cleaner

3) Warehouse Packing



Advantages

 Why Choosing Heng'An Industrial High Pressure Steam Cleaner-Heng'An Advantages:

1)Water& Energy Saving——eg. 1.5L, 0.8KW·H wash a car 2)Multi-function: Dry and wet steam for different cleaning requirement.
3)Steam Humidity Adjustment: stepless regulation4)Environment Friendly: Chemical saving, but wonderful cleaning effect
5)Disinfection and Smell Removing,360 degree no dead corner6)Mobile and Automacted Controlled: Texas imported chip, LED display for working condition and defaults
7)Various Models: Saturated Steam & High Pressure   Micro Hot Water & Self Service & OEM models 8)Multiple Safety Protection Measure: Digital detecting(pressure, temperature, water level) and alarm protection system; Safety valve; Shutdown protections of over-pressure, water shortage, electricity leaking and accident.
9)Durable: Stainless steel body, Hi-Q sodium silicate for heat preservation & insulating10)Imported Electricity Components and Important Parts.
11)Short Steam Generating Time, Steam Standby All the time12)Modularized Parts for Easy Maintenance
13) Working All Day Long, Stable Pressure14)Waranty: One year
15) Inner Self Clean: Unique cleaning design of tank bottom, cleaning up the scale easily!16) Certification: CE (European Certificate) & National QS Test



Video Link:

1. Heng'An Steam Car Washer:

(1) Car Mat Steam Cleaning Performance: https://youtu.be/iF75BsWA3UE
(2) Steam Car Wash Process Demonstration: https://youtu.be/hDvWA4DIpOc
2. Heng'An High Pressure Industrial Steam Washer:
(1) Hotel Kitchen Oil Window Steam Cleaning&Sterilizing: https://youtu.be/Ixs75sQS-EI
(2) Industrial Rusty Dirty Pump Cleanging: https://youtu.be/arWR4lUGEe4
(3) Industrial steam cleaning on production line heavy oil machinery parts: https://youtu.be/H25_jrdiaOI
3. 90bar high pressure water VS 10bar steam cleaning machinehttps://youtu.be/c7axFmSFrio
4. Heng'An Steam Technology and Steam Performance:
(1) How to choose a steam car washer: https://youtu.be/j6Yql-dz27U
(2) Comparison of Super Dry Saturated Steam and Dry Saturated Steam: https://youtu.be/emdDG9s413Q
(3) 30KW Super Powerful Industrial Steam Cleaning Machine: https://youtu.be/UkuKnkd_SKk



 ---------------------------------------------------------------------------------------------

HF2190-380V 10bar two guns high pressure industrial steam cleaner
